Widening a Van de Wiele loom: 175 to 240 cm
Most Van de Wiele looms leave the factory at 175 cm. The widths we extend them to, what changes besides the width, and when it beats buying another loom.
Most Van de Wiele velvet and carpet looms leave the factory at 175 cm. That width suits a lot of work, but not every rug size or every fabric a mill wants to weave. When a mill needs wider fabric, the first idea is often to buy a wider loom. There is a second option: extend the loom you already have.
What loom extension means

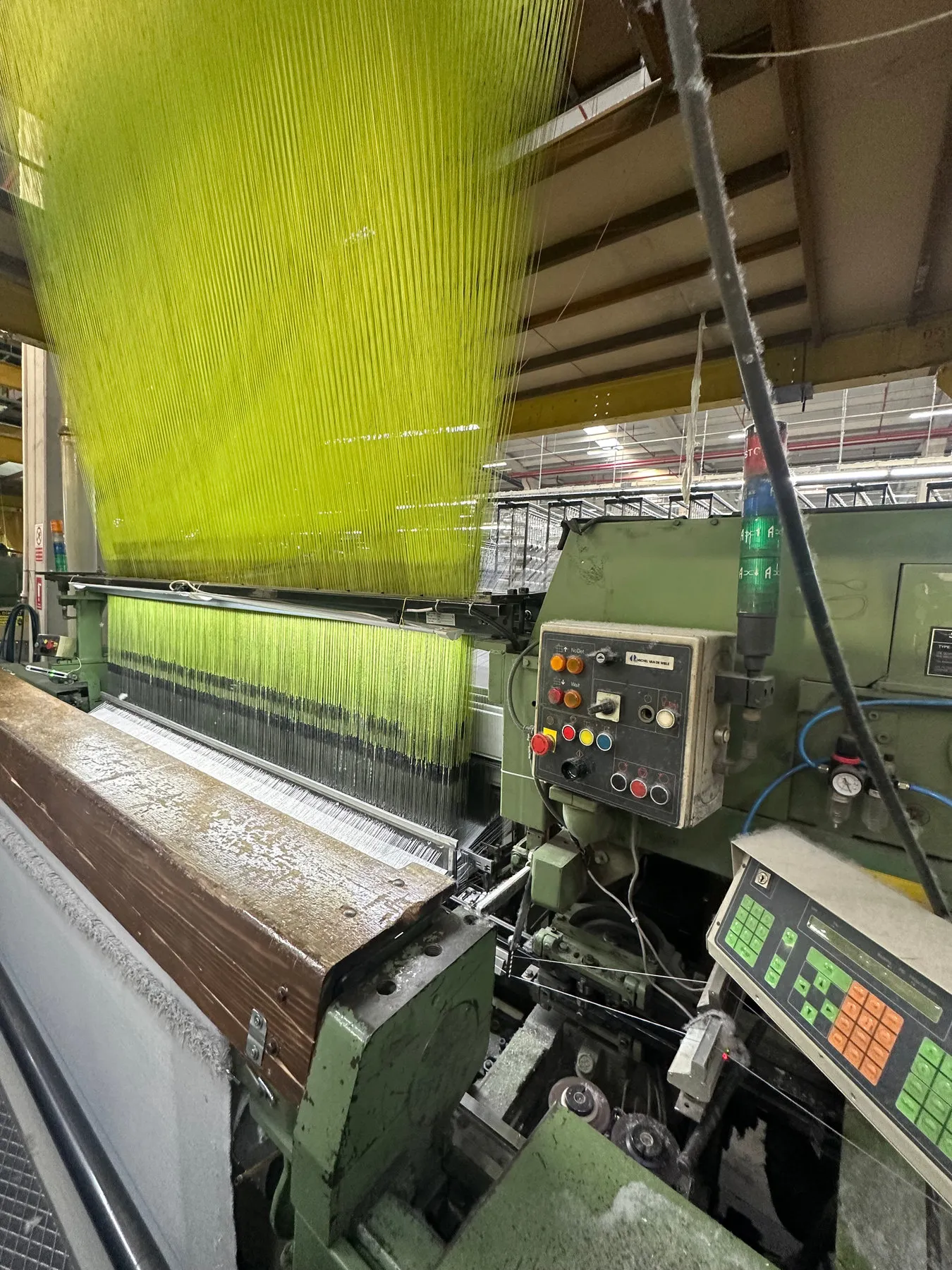

We rework Van de Wiele looms so that they weave wider fabric. The working widths we build are 200, 210, 240, 260 and 300 cm. Larger carpet and rug sizes then run on the same loom.
More than width: the shed opening
Width is not the only thing that can change. We can also increase the shed opening, the reed’s range of movement. A larger shed opening raises the loom’s colour capacity and the fabric density it can reach.
You can see this in our listings: one Van de Wiele VME22 with a Stäubli CX960 jacquard had its shed opening revised to 11 cm for high-pile and coloured weaving.
When extension makes sense
Extension is worth a look when:
- you already run a Van de Wiele loom that works well and that your weavers know,
- the products you want need fabric wider than 175 cm,
- you would rather keep your production know-how on the floor than start again with a new machine.
Extending the machine you have costs far less than a new loom.

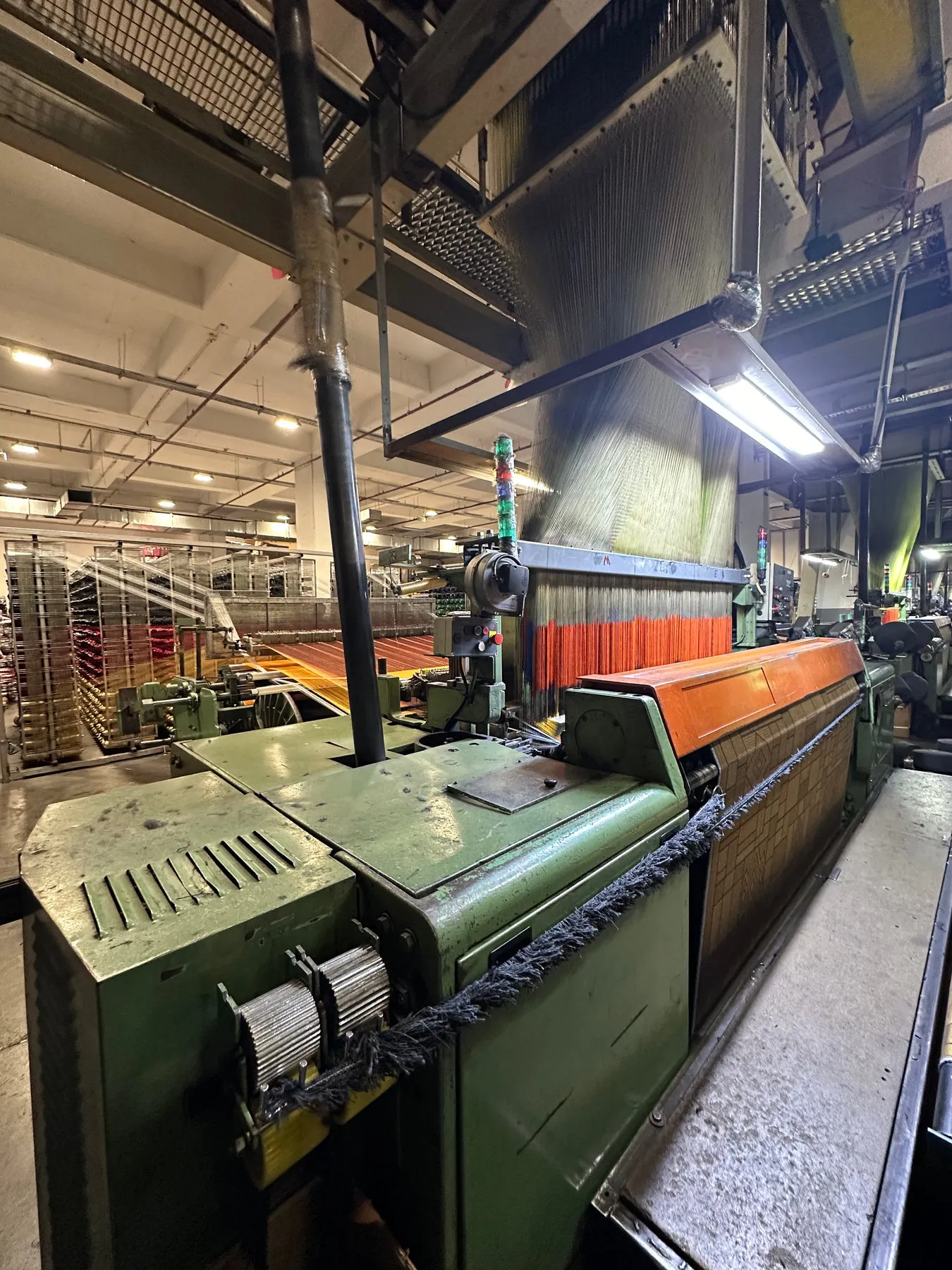

If you don’t have a loom yet, compare both routes: a wider used loom, or a 175 cm loom that you extend. Our current listings include Van de Wiele looms in 175, 200 and 210 cm working widths.
Don’t forget the harness
A wider loom needs a harness that fits it. When the width changes, the harness plan and the comber board have to be checked against the new width. Güryay builds and fits jacquard harnesses; see harness building.
Proven in the field
Our extensions run on hundreds of looms in Türkiye and abroad. The same team also handles installation and technical support when the machine has to move or be set up again.
Ask about your loom
Tell us your loom model and the width you want: VMM32, MPS32, VME22, MPS22 or another make, and 200, 210, 240, 260 or 300 cm. You can do it on the loom extension page or message us on WhatsApp.
